CnRegisterMapping

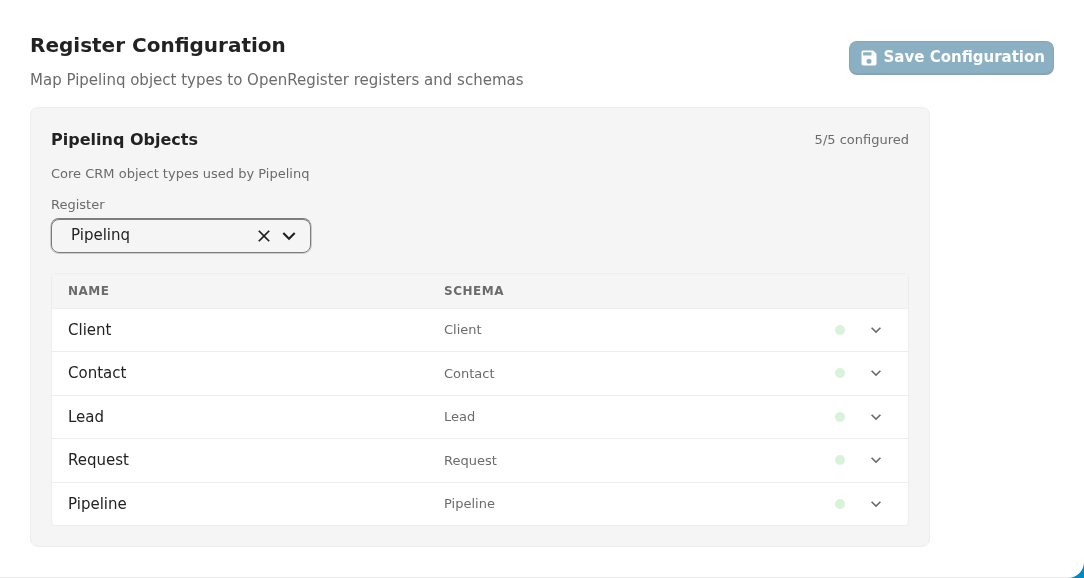

OpenRegister register/schema configuration panel. Lets admin users map app object types to OpenRegister registers and schemas. Groups related object types together, shows a register dropdown (with auto-schema-matching), and a save/reimport action area.

Wraps: NcSelect, NcNoteCard, NcButton, NcLoadingIcon (via CnSettingsSection)

Try it

Loading CnRegisterMapping playground…

Props

Prop	Type	Default	Description
groups	Array	(required)	Groups of object types that share a register. Each group: { name, description?, registerConfigKey?, types: [{ slug, label, description?, configKey? }] }
name	String	'Register configuration'	Section title
description	String	'Configure OpenRegister schema mappings for your object types'	Section description
docUrl	String	''	Documentation URL — shows an info icon next to the title
configuration	Object	{}	Current configuration values keyed by config key: { register: '5', client_schema: '28', ... }
showSaveButton	Boolean	true	Whether to show the Save button
saving	Boolean	false	Whether a save is in progress
showReimportButton	Boolean	false	Whether to show the Re-import button
reimporting	Boolean	false	Whether a reimport is in progress
saveButtonText	String	'Save configuration'	Save button label
reimportButtonText	String	'Re-import configuration'	Re-import button label
autoMatch	Boolean	true	When a register is selected, automatically match schema titles to object type slugs
labels	Object	{ register, schema, configured, notConfigured, noSchemas, selectRegister, selectSchema, allConfigured, partiallyConfigured }	Override UI strings (all default to translated English)

Events

Event	Payload	Description
update:configuration	configuration	Emitted when any register or schema selection changes (use with .sync or v-model)
save	—	Save button clicked
reimport	—	Re-import button clicked

Slots

Slot	Description
#actions	Extra action buttons rendered alongside Save/Re-import
#group-header	Custom header content for each group (scoped: { group })
#footer	Footer content below the configuration section

Usage

<CnRegisterMapping
  :groups="[
    {
      name: 'Client management',
      registerConfigKey: 'client_register',
      types: [
        { slug: 'client', label: 'Clients', configKey: 'client_schema' },
        { slug: 'contact', label: 'Contacts', configKey: 'contact_schema' },
      ],
    },
  ]"
  :configuration="settings"
  :saving="saving"
  @update:configuration="settings = $event"
  @save="onSave" />

This component is typically used in the admin settings page of an app to let administrators configure which OpenRegister registers and schemas map to each entity type.

Reference (auto-generated)

The tables below are generated from the SFC source via vue-docgen-cli. They reflect what's actually in CnRegisterMapping.vue and update automatically whenever the component changes.

Props

Name	Type	Required	Default	Description
name	string		() => t('nextcloud-vue', 'Register configuration')	Section title
description	string		() => t('nextcloud-vue', 'Configure OpenRegister schema mappings for your object types')	Section description
docUrl	string		''	Documentation URL
groups	Array<{ name: string, description: string, registerConfigKey: string, types: Array<{ slug: string, label: string, description: string, configKey: string }> }>	✓	—	Groups of object types that share a register.
configuration	object		\{\}	Current configuration values: { register: '5', client_schema: '28', ... }
showSaveButton	boolean		true	Show save button
saving	boolean		false	Whether save is in progress
showReimportButton	boolean		false	Show reimport button
reimporting	boolean		false	Whether reimport is in progress
saveButtonText	string		() =&gt; t('nextcloud-vue', 'Save configuration')	Save button text
reimportButtonText	string		() =&gt; t('nextcloud-vue', 'Re-import configuration')	Reimport button text
autoMatch	boolean		true	Auto-match schema titles to type slugs on register change
labels	object		\{ register: t('nextcloud-vue', 'Register'), schema: t('nextcloud-vue', 'Schema'), configured: t('nextcloud-vue', 'Configured'), notConfigured: t('nextcloud-vue', 'Not configured'), noSchemas: t('nextcloud-vue', 'No schemas available in this register'), selectRegister: t('nextcloud-vue', 'Select a register'), selectSchema: t('nextcloud-vue', 'Select a schema'), allConfigured: t('nextcloud-vue', 'All types configured'), partiallyConfigured: t('nextcloud-vue', 'configured') \}	UI labels (i18n)

Events

Name	Payload	Description
reimport	—
update:configuration	—
save	—

Slots

Name	Bindings	Description
actions	—
group-header	group, configured-count, total-count
footer	—
